Amxon- WIRELESS MAT SWITCH
CNB-256W
Key Specifications
- Power supply: Two 20323V button batteries
- Standby current: 10μA
- Transmission current: 10.5mA
- Usage duration: With an average of 300 steps per day, can be used for 250 days

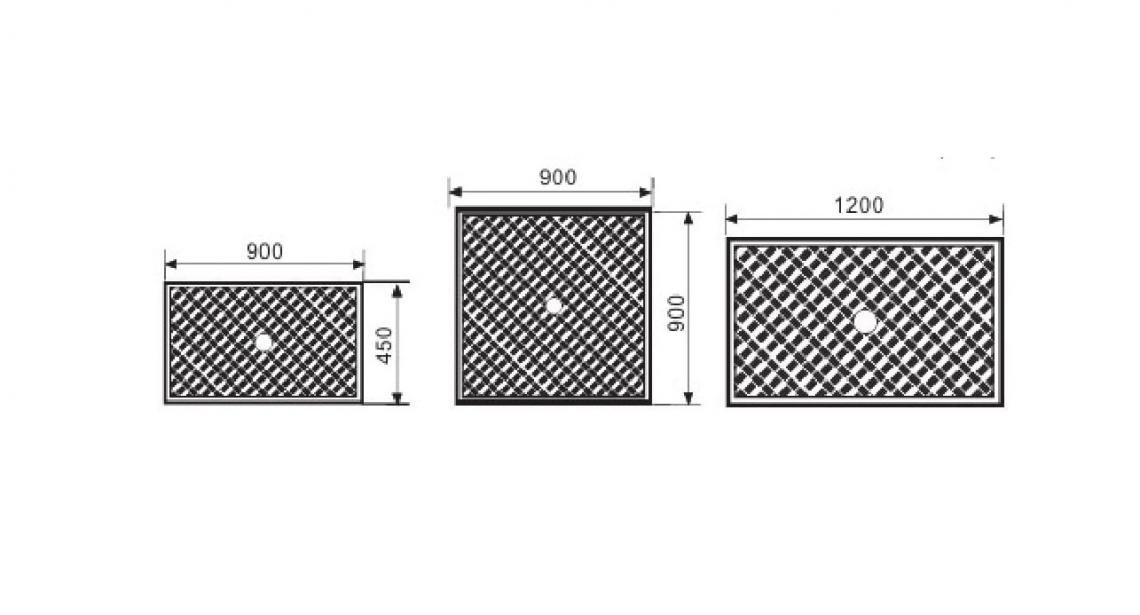

- Product specifications: 1200×800mm/900×900mm/900×450mm
- Transmission distance: Depending on the actual site electrical shielding environment, normally exceeds 10m
- Trigger force: ≥15KG Maximum compression strength: 800kg
- Receiver static current: 34mA
- Power supply: DC12~30V
- Operating current: 62mA (with DC12V power supply)
- Operating temperature: -42℃~45℃
- Operating humidity: 10~90%RH
- Relay contact capacity: 1A 24VDC
- Dimensions: 110(L)×30(W)×15(H)mm
