Amxon- Magnetic Lock Series

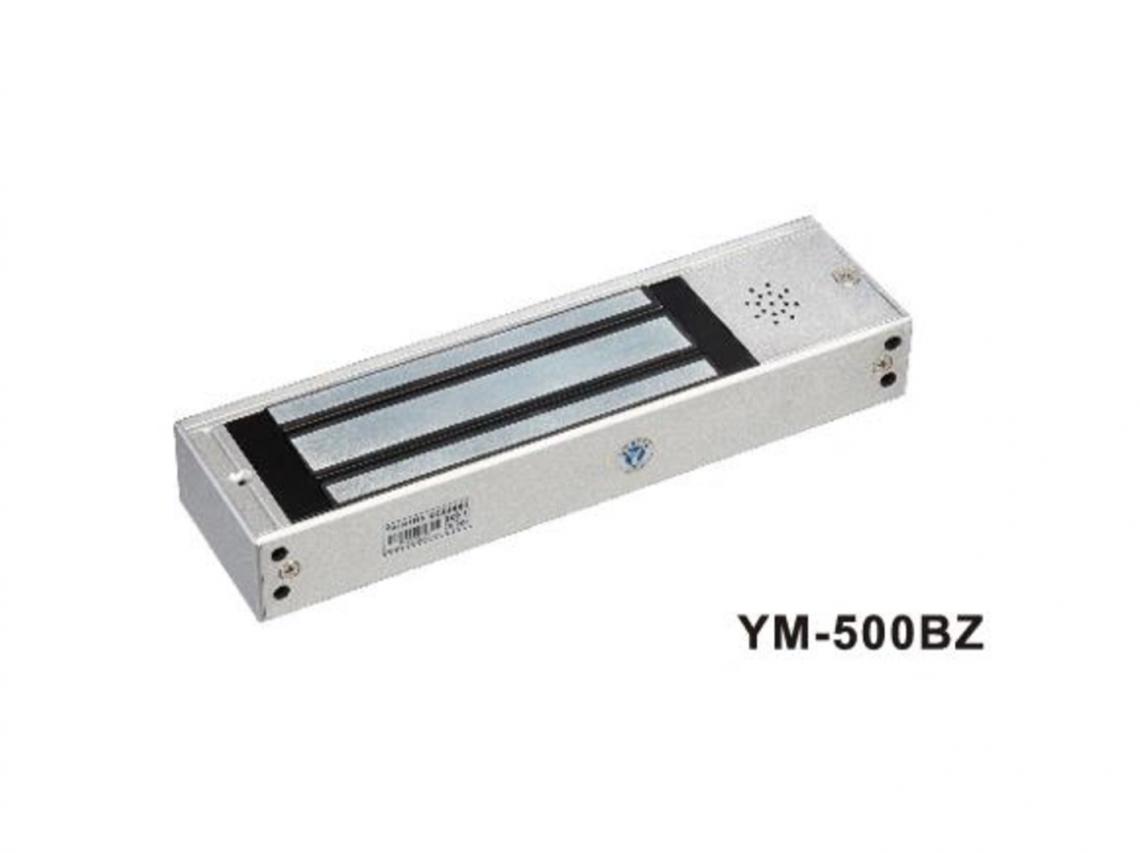

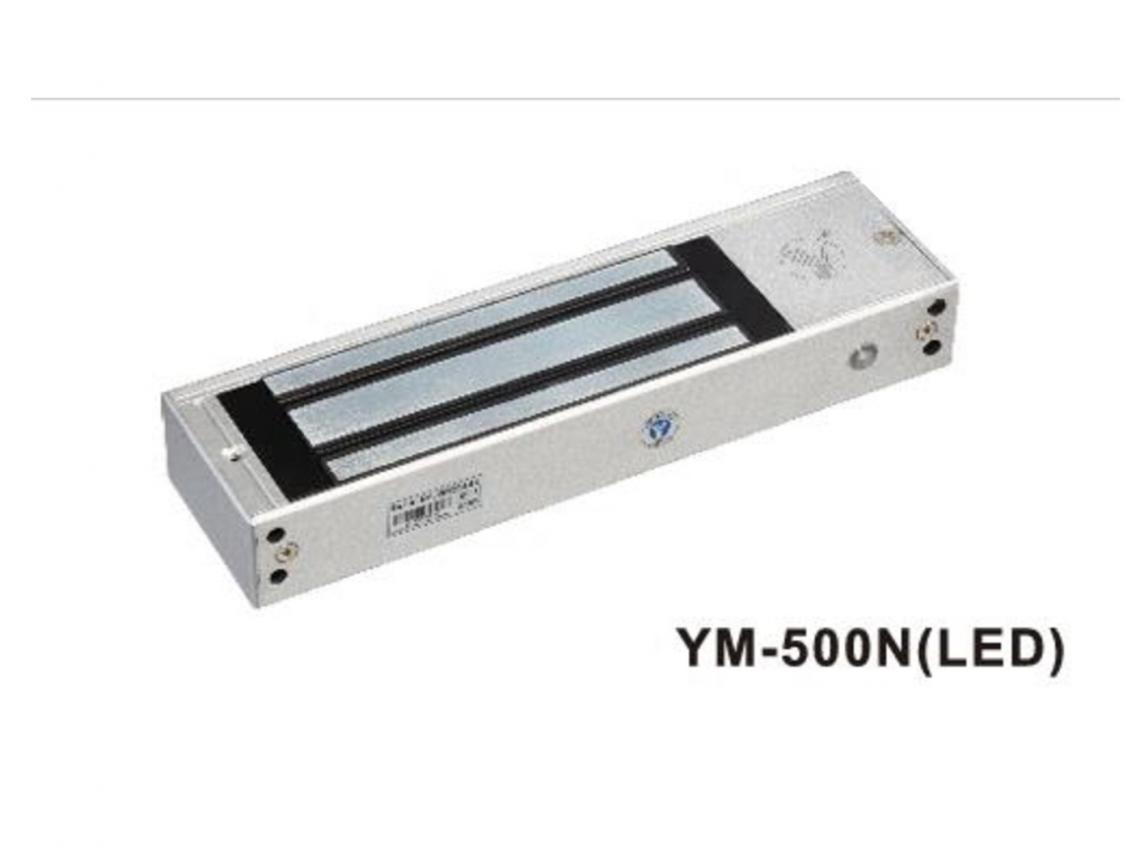

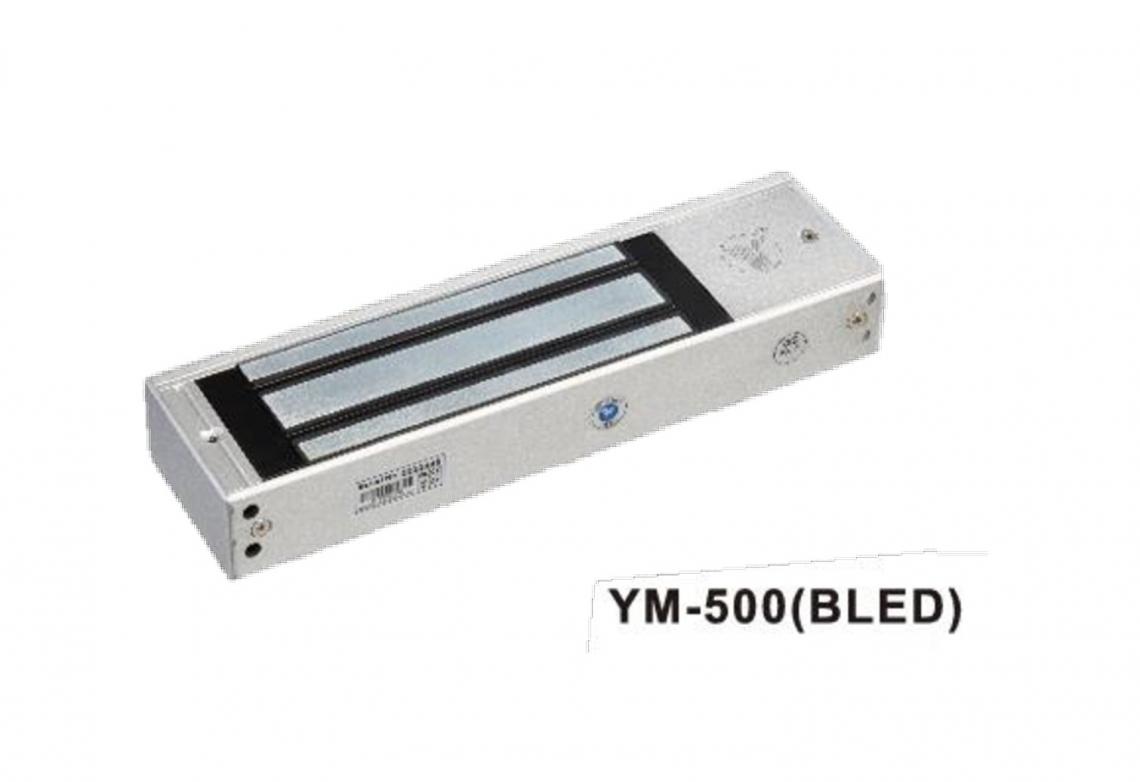

YM-500N , YM-500N (LED), YM-500 BZ, YM-500 (NLED)
Key Specifications
- Size: 265L x 73W x 41H (mm)
- Holding Force: 500kg (1200Lbs)
- Voltage: DC12V or DC24V
- Current Draw: 12V / 500mA ±10% | 24V / 250mA ±10%
- Signal Output: Lock signal (NO/NC/COM)
- LED Indicator: Red – Locked | Green – Unlocked
- Time Delay: 0, 3, 6, 9 seconds (selectable)
- Operating Mode: Fail safe
- Weight: 4.5kg
Suitable For
- Wooden doors
- Metal doors
- Fireproof doors
- High-security entry points
