Amxon- Magnetic Lock Series

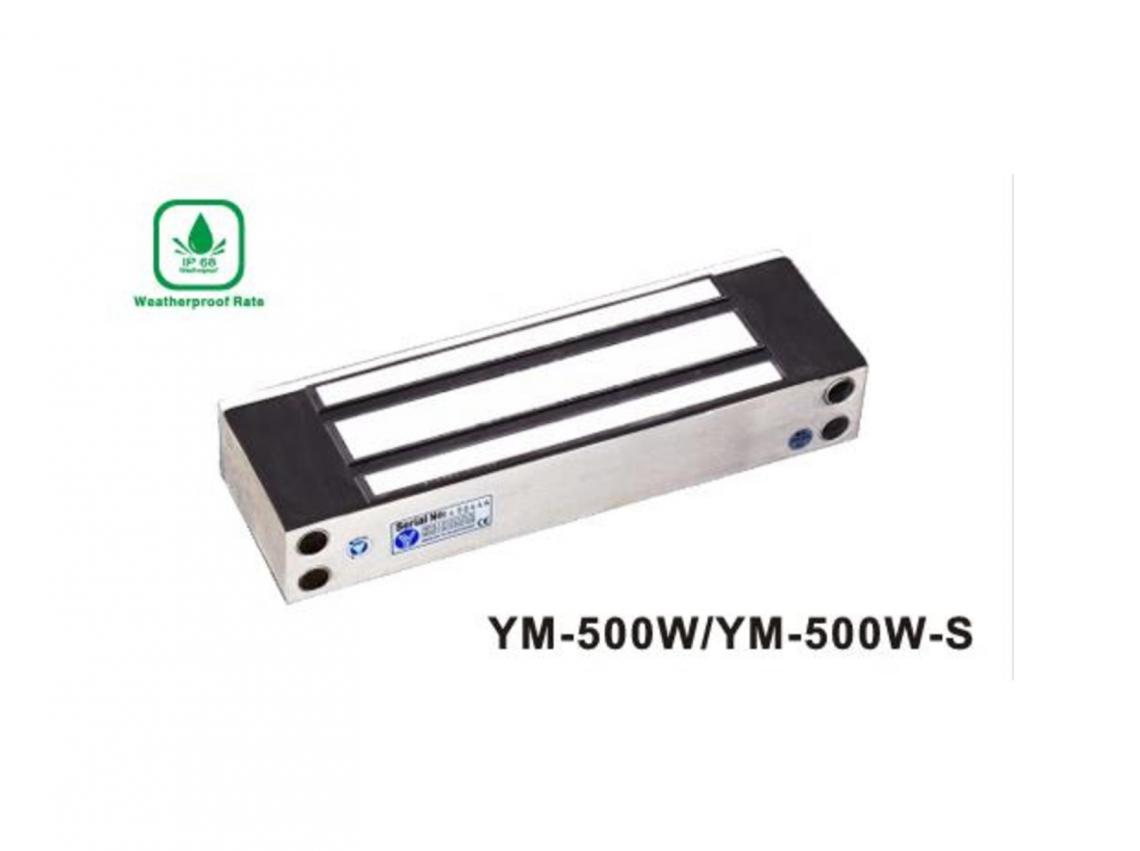

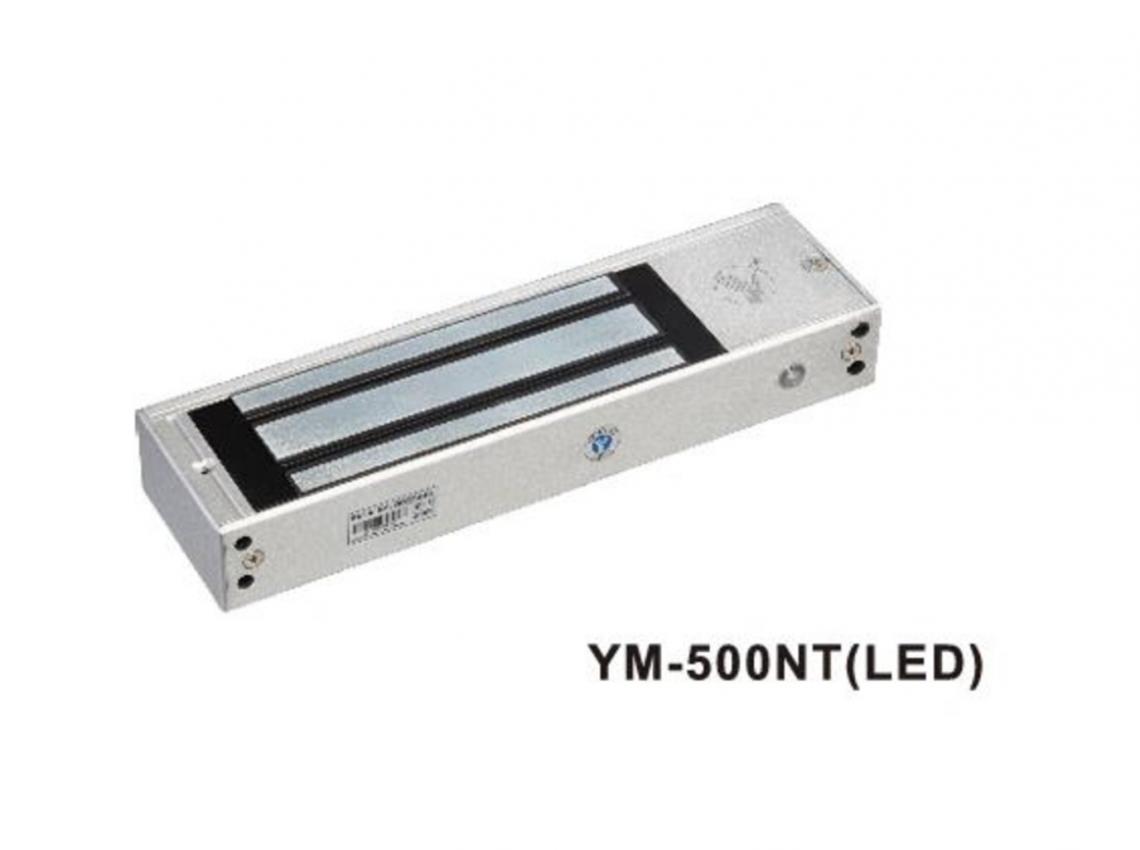

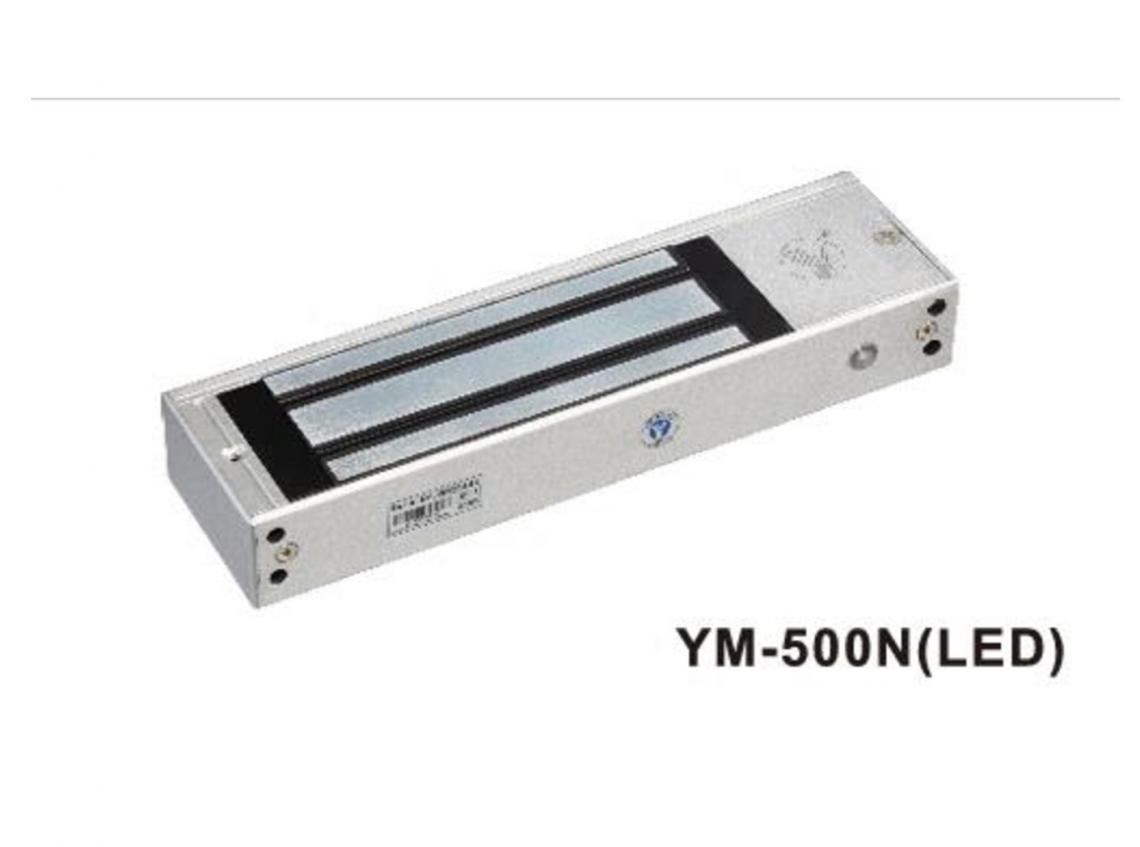

YM-500N, YM-500N (LED), YM-500NT(LED), YM-500W
Key Specifications
- Size: 220L x 63W x 36H (mm)
- Holding Force: 500kg (1200Lbs)
- Voltage: DC12V or DC24V
- Current Draw: 12V / 420mA ±10% | 24V / 210mA ±10%
- Signal Output: YM-500W-S
- LED Indicator: Red – Locked | Green – Unlocked
- Time Delay: 0, 3, 6, 9 seconds (selectable)
- Waterproof Level: IP68
- Operating Mode: Fail safe
- Weight: 4.5kg
Suitable For
- Wooden doors
- Metal doors
- Fireproof doors
- Outdoor installations
